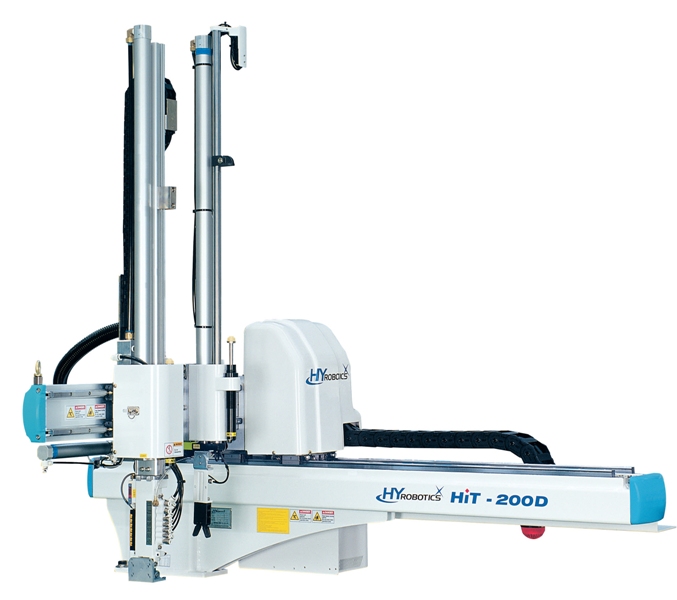

HIT : Take out Robots with Servo Traverse: 50 ~ 200 Tons

•

• HIT Series Robot ( Simple Control , Light Weight ) MSRP Starting at $ 11,900.00
  • Traverse Robot with 1 Axis Servo on Traverse
  • For 50 ~ 250 Tons Horizontal IMM
  • Light weights Application
  • User Friendly HYNC-200 Control
  • Industry Standard Safety
  • High quality components
  • LIGHT WEIGHT / HIGH SPEED TRAVERSE ROBOT !
  • Click here to download Brochure
  • Special offer might be avaliable, Click here to Check !

STANDARD FEATURE

ü       Traverse Beam is a high strength, thick walled, steel tubing with precision machined surface provide maximum rigidity and durability with high precision robot position.

ü       True AC Digital Brushless Servo Motor ensures each step of robot operation under precision and high speed for traverse Axis. AC digital servo amplifiers ensure precision location for each step.

ü       NSK Linear runner block bearings, fully enclosed on precision-machined rails provide high strength and precision operation of robot.

ü       Festo Actuator for 90 Deg Wrist Rotation for parts placement on conveyor or stacking machines.

ü       Aluminum extruded profile descent arm for light weight with high strength and Speed

ü       Vacuum generator with sensing switch at the end of robot arm, it is easy to reach and confirm sensing.

ü       Pneumatic circuits for part and sprue grip.

ü       Removable alignment pins, When used will positively locate the end of arm tool to the vertical arm

DETAIL INFORMATION

Ø       Descent Arm ( Y Axis ) : Pneumatic Operation

§         Aluminum Extrusion, Non-Telescopic, Festo Actuator

HIT series vertical motion operated by Festo Pneumatic Actutor with single stage . Precision location in every cycle with high speed take out application is possible Also high quality, strong shock absorber ensure long operation without interruption.

Ø       Traverse Stroke ( Z Axis ) : Digital AC Servo Operation

§         Steel Frame, Timing Belt Driven, Yaskawa Servo Motor / Drive, NSK LinearMotionGuide

Digital AC brushless servo motor with optical encoder provides fast, smooth and accurate performance.

Ø       Kick Stroke ( X Axis ) : Pneumatic  Operation

§         Single Arm Support, Festo Actuator Drive, NSK LinearMotionGuide

Single crosswise support arm design slim design yet strong support.

Ø       90 Deg Wrist Flip for flat placement of Parts ( C-Axis ) : Pneumatic Drive ( Festo Actuator )

Ø       HYNC-200  Controller

Ø       Body Attached Control Box ( Servo Amplifier, DC Power Volt Generator, Servo Control Board, Molding Machine Interface board,

  Main Control Board, Noise Filter Etc )

Ø       Custom Engineered Adaptor Plate to fit molding machines

Ø       SPI Robot/IMM Electrical Interface : Euromap 12

Ø       One Vacuum circuits ( Sensor included )

Ø       One Gripper Circuit with Monitoring Sensor input

Ø       One Pressure Circuit with Monitoring Sensor input

Ø       One Printed Manual
