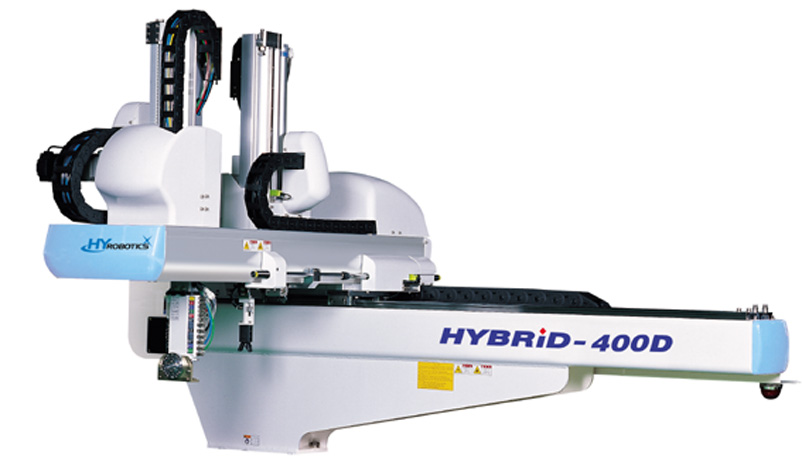

HYBRID : Dual Arm Robots : Full servo for main arm and pneumatic for sub arm : ( 100 ~ 800 Tons  )

•

• HYBRID Series Robot  MSRP Starting at $ 29,500.00
  • Traverse Robot with Full Servo on Main Arm and Pneumatic on Sub Arm. ( Double Arm Model )
  • For 150-800 Tons Horizontal Injection Molding Machine
  • Fast and Heavy weights Application,
  • Standard : HYNC-700
  • Industry Standard Safety
  • High quality components
  • BEST FOR PRE / POST INSERT MOLDING AUTOMATION
  • Click here to download Brochure
  • Special offer might be avaliable, Click here to Check !

  STANDARD FEATURE

  ü      Unique Double Arm Model with combination of 3 Axis Servo and 1 Axis servo Hybrid Style Robot. One Robot comes with Two Robot function.

  ü       Traverse Beam is a high strength, thick walled, steel tubing with precision machined surface provide maximum rigidity and durability with high precision robot position.

  ü       True AC Digital Brushless Servo Motor ensures each step of robot operation with precision and high speed. Independent AC digital servo amplifiers ensure flexibility ,simultaneous and coordinated motion.

  ü       NSK Linear runner block bearings, fully enclosed on precision-machined rails provide high strength and precision operation of robot.

  ü       Festo Actuator for 90 Deg Wrist Rotation for parts placement on conveyor or stacking machines.

  ü       Aluminum extruded profile descent arm for light weight with high strength and Speed

  ü       Vacuum generator with sensing switch at the end of robot arm, it is easy to reach and confirm sensing.

  ü       Pneumatic circuits for part and sprue grip.

  ü       Removable alignment pins, When used will positively locate the end of arm tool to the vertical arm

       ü      Custom Adapter Plate for IMM

  DETAIL INFORMATION

  Ø       Descent Arm ( Y Axis ) : Digital AC Servo Operation

  §         Aluminum Extrusion, Telescopic, Timing Belt Driven, Yaskawa Servo Motor / Drive, NSK Linear Guide

  Main Arm comes with True AC Digital servo motor with the multiplying effect of a belt drive with two stage synchronized telescopic vertical motion of the HYRobotics HYBRID Series Robot comes with Yaskawa AC brushless servo motor with optical encoder ensures accurate positioning and flexible part handling, such as part stacking, insert picking at the product release point. Sub Arm comes with two stage Telescopic Motion with Festo Actuator Operation..

  Ø       Traverse Stroke ( Z Axis ) : Digital AC Servo Operation

  §         Steel Frame, Timing Belt Driven, Yaskawa Servo Motor / Drive, NSK LinearMotionGuide

  Digital AC brushless servo motor with optical encoder provides fast, smooth and accurate performance.  This permits part placement into “beside the press” equipment such as:  floor-mounted de-gating systems, weigh scales, hot stamping presses and indexing along a conveyor.

  Ø       Kick Stroke ( X Axis ) : Digital AC Servo Operation

  §         Single Arm Support, Timing Belt Driven, Yaskawa Servo Motor / Drive, NSK LinearMotionGuide

  Dual crosswise support arm design for added rigidity and stability. Main arm for Digital AC brushless servo motor with optical encoder ensures greater part handling versatility. Sub Arm comes with Festo Pneumatic Operation with one touch stroke and position adjustment.

  Ø       90 Deg Wrist Flip for flat placement of Parts ( C-Axis ) : Pneumatic Drive ( Festo Actuator )

  Ø       HYNC-700 Touch Screen Controller with movable wheeled cart. ( Detail Information is Attached )

  Ø       Body Attached Control Box ( Servo Amplifier, DC Power Volt Generator, Servo Control Board, Molding Machine Interface board,

    Main Control Board, Noise Filter Etc )

  Ø       Custom Engineered Adaptor Plate to fit molding machines

  Ø       SPI Robot/IMM Electrical Interface : Euromap 12

  Ø       One Vacuum circuits ( Sensor included )

  Ø       One Gripper Circuit with Monitoring Sensor input

  Ø       One Pressure Circuit with Monitoring Sensor input

  Ø       One Printed Manual
