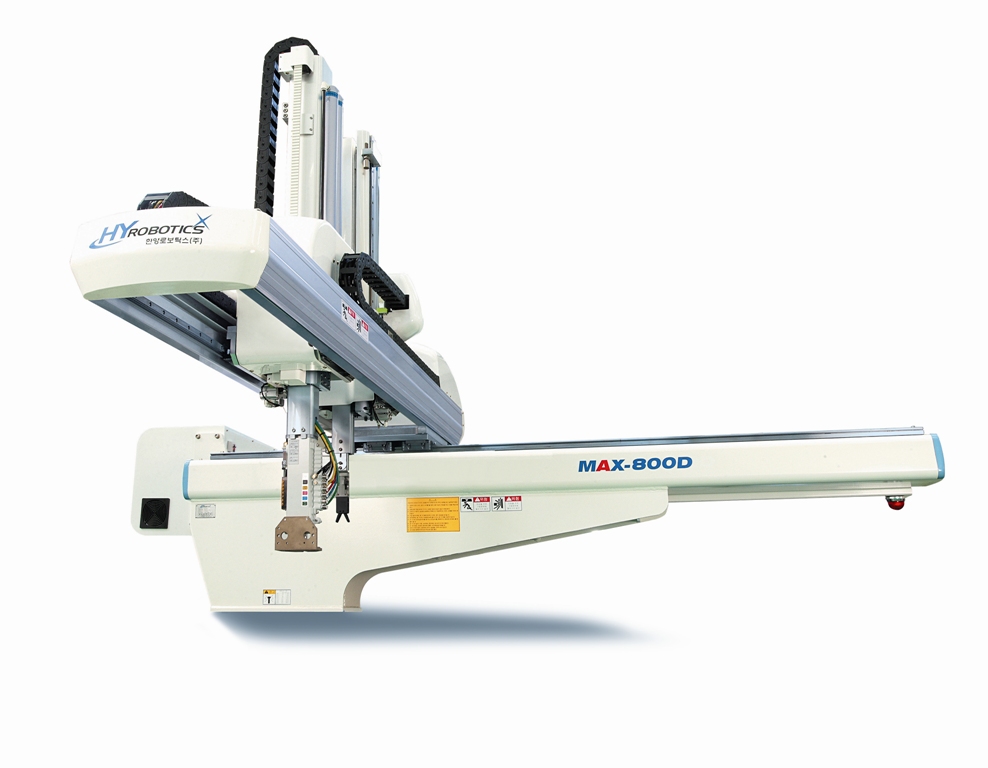

MAX : Take out Robots with Servo Traverse and Kick: 450 ~ 900 Tons.

•

• MAX Series Robot : MSRP Starting at $ 26,500.00
  • Traverse Robot with Servo Motors on Traverse or Kick
  • For 450 ~ 800 Tons Horizontal Injection Molding Machine
  • Fast and Heavy weights Application,
  • User Friendly HYNC-200 Control
  • Industry Standard Safety, CE Certified, ISO 9001
  • High quality components
  • Click here to download Brochure
  • Special offer might be avaliable, Click here to Check !

  　

• STANDARD FEATURE

  ü       Traverse Beam is a high strength, thick walled, steel tubing with precision machined surface provide maximum rigidity and durability with high precision robot position.

  ü       True AC Digital Brushless Servo Motor ensures each step of robot operation with precision and high speed. Independent AC  digital servo amplifiers ensure flexibility ,simultaneous and coordinated motion.

  ü       NSK Linear runner block bearings, fully enclosed on precision-machined rails provide high strength and precision operation of robot.

  ü       German Enginnered Festo Actuator with Belt Mechanism for Down/Up Motion

  ü       Festo Actuator for 90 Deg Wrist Rotation for parts placement on conveyor or stacking machines.

  ü       Aluminum extruded profile descent arm for light weight with high strength and Speed

  ü       Vacuum generator with sensing switch at the end of robot arm, it is easy to reach and confirm sensing.

  ü       Pneumatic circuits for part and sprue grip.

  ü       Removable alignment pins, When used will positively locate the end of arm tool to the vertical arm

       ü      Custom Adapter Plate for IMM

  DETAIL INFORMATION

  Ø       Descent Arm ( Y Axis ) : Digital AC Servo Operation

  §         Aluminum Extrusion, Telescopic, Timing Belt Driven, Festo Actuator Drive, NSK Linear Guide

  VECT series vertical motion operated by Festo Pneumatic Actutor with the multiplying effect of a belt drive with two stage synchronized telescopic mechanism with NSK Linear Motion Guide. This will ensure precision location in every cycle with high speed take out application

  Ø       Traverse Stroke ( Z Axis ) : Digital AC Servo Operation

  §         Steel Frame, Timing Belt Driven, Yaskawa Servo Motor / Drive, NSK Linear Motion Guide

  Digital AC brushless servo motor with optical encoder provides fast, smooth and accurate performance.  This permits part placement into “beside the press” equipment such as:  floor-mounted de-gating systems, weigh scales, hot stamping presses and indexing along a conveyor.

  Ø       Kick Stroke ( X Axis ) : Digital AC Servo Operation

  §         Double Arm Support, Timing Belt Driven, Yaskawa Servo Motor / Drive, NSK Linear Motion Guide

  Robust double crosswise support arm design. Digital AC brushless servo motor with optical encoder ensures greater part handling versatility

  Ø       90 Deg Wrist Flip for flat placement of Parts ( C-Axis ) : Pneumatic Drive ( Festo Actuator )

  Ø       HYNC-200 Controller

  Ø       Body Attached Control Box ( Servo Amplifier, DC Power Volt Generator, Servo Control Board, Molding Machine Interface board,

    Main Control Board, Noise Filter Etc )

  Ø       Custom Engineered Adaptor Plate to fit molding machines

  Ø       SPI Robot/IMM Electrical Interface : Euromap 12

  Ø       One Vacuum circuits ( Sensor included )

  Ø       One Gripper Circuit with Monitoring Sensor input

  Ø       One Pressure Circuit with Monitoring Sensor input

  Ø       One Printed Manual
